uPVC sliding doors

Window Magic sliding doors are not just doors but effective sound and weather barriers. A gentle horizontal push would open the view to the outer world. These doors are apt for modern structures as they do not cover much space and allow maximize natural light.

The most important factor while choosing the best sliding doors for your use, is the usefulness of the hardware used for the smooth functioning of the door. The best quality hardware for your door will give a long life to your doors functioning and provide more safety and security as well.

uPVC Sliding doors from Window Magic offer contemporary styling, excellent performance and smooth integration. Manufactured by implementing the highest standards of engineering into creative imagination of styling & designing, sliding doors are always reliable and secure for your homes and offices.

At, Window Magic, we bring you the best sliding doors by using the best designing aesthetics and engineering for all your needs. Come and check our customized products today!

Advantages

  • Less space taking as no extra space is required for opening doors
  • Energy efficient
  • Better internal and external correction
  • Allow sufficient inflow of natural light
  • Offer great view of the surrounding

Color Options

Single Glass

Height of Frame

Glass: Single Glass

Profile System: SF2

Sizes represent a Design of 2Track / 2Sash in Frame

2200 right right right right right right
2000 right right right right right right
1800 right right right right right right
  1000 1200 1400 1600 1800 2000

Outside Width of Frame

  Two Point Lock (Handle + Espag.)
  Push Lock & Two Point Lock

Outside Width of Frame

  Two Point Lock (Handle + Espag.)
Double Glass

Glass: Double Glass

Profile System: SF2

Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame
2200 right right right right right right
2000 right right right right right right
1800 right right right right right right
  1000 1200 1400 1600 1800 2000

Outside Width of Frame

  Two Point Lock (Handle + Espag.)

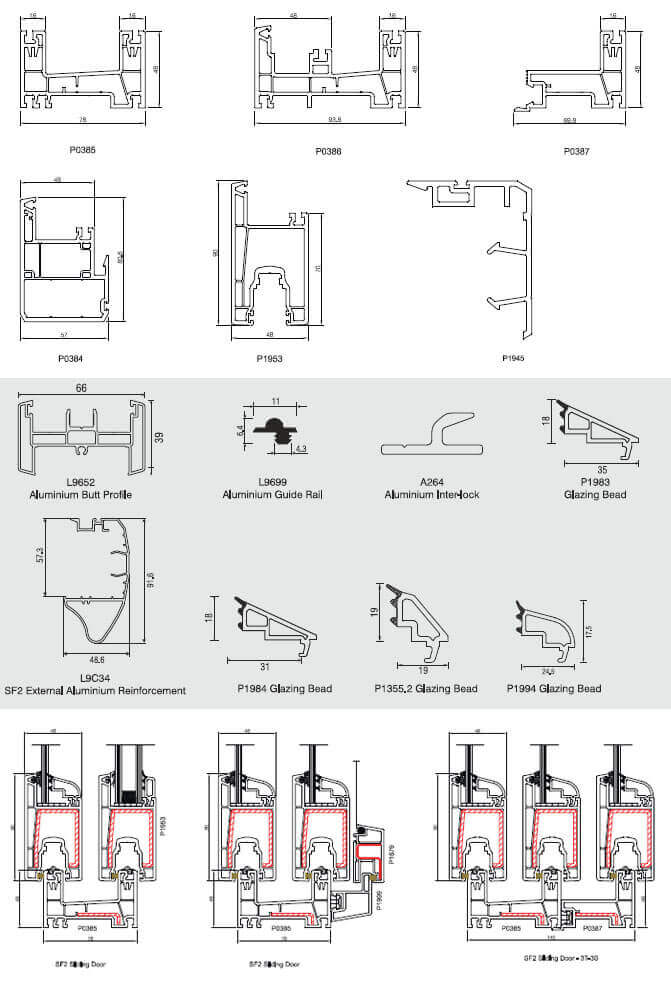

Profile Drawings

Installation

  • Window/Door joining walls should be plastered from inside as well as outside. The cavity in which the new window shall be installed shall be free from any obstruction. The sill should be well plastered.
  • Each window should be adequately and properly shimmed to the plumb level.
  • The cavity shall be measured at three points both in width and height as under, the variation between maximum and minimum size in case of width and also in height should not exceed 12 mm.
  • The width of the sill be more than the window frame width.
  • Clear guidelines to be given whether window to be internally flushed or externally flushed or what space to be left whether outside or inside if the sill level is more.
  • The installation shall commence only after one coat of paint, it should also be ensured that there is no plaster of Paris work done on the joining face of the window to the wall.
  • In case the grills are to be installed for slider windows and inward opening window it should be installed before the installation of the window. In case of outward opening window it should be installed after the installation of the window.
